CPS SC20kW - CN — Inverter manufactured by Shanghai Chint Power Systems Co., Ltd. (CPS), listed for the Pakistani market.
About this item
- 20 kW rated output at 98.1% efficiency
- 5-year product warranty
- No certifications supplied by the vendor. Ask for them before paying
- 750x543x220 mm, 50 kg
- Made in China · 602 units held in Lahore
Rs 1.1/ watt
Rs 21,500 per unit
Estimated price
Worked out from the maker's own export price, plus shipping, duty, sales tax and clearing into Pakistan.
No seller has given us their price for this yet. Ask for a quote before you buy.
- Sold by
- Delta Energy
- Dispatch
- in 15 days from Lahore
- Covered by
- 5-year manufacturer warranty
- Other sellers
- Compare 3 more →
Where to buy this
5 sellers stock this SKU. The figure under each price is what that seller costs you over the cheapest new offer.
Indicative prices, estimated from landed cost. Sellers have not quoted these. Ask for a quote before you buy.
| Seller | Condition | Covered by | Price | Stock | Dispatch | Action |
|---|---|---|---|---|---|---|
| Solar TradeLahore | Refurbished | 1-year seller warranty, tested output | Rs 18,500−Rs 3,000 | — | 6d | |
| Delta EnergyLahore | New | 5-year manufacturer warranty | Cheapest newRs 21,500 | — | 15d | |
| Dewmak Energy (Pvt) LimitedLahore | New | 5-year manufacturer warranty | Rs 22,100+Rs 600 | — | 3d | |
| APC SolarLahore | New | 5-year manufacturer warranty | Rs 22,100+Rs 600 | — | 2d | |
| Delux ElectronicsLahore | New | 5-year manufacturer warranty | Rs 23,000+Rs 1,500 | — | 5d |
Second-hand panels are worth buying, but only on inspection. Ask for an output test under load and check the serial numbers against the manufacturer before paying. Relabelled B-grade stock sold as A-grade is the most common scam in this market.
Specifications
Electrical
| Rated output | 20 kW |
|---|---|
| Efficiency | 98.1% |
| Price per watt | Rs 22 |
Physical
| Dimensions | 750x543x220 mm |
|---|---|
| Weight | 50 kg |
| Country of origin | China |
Warranty & certification
| Product warranty | 5 years |
|---|---|
| Certifications | None supplied |
| Manufacturer tier | Not Tier-1 listed |
Availability
| Brand | Shanghai Chint Power Systems Co., Ltd. (CPS) |
|---|---|
| Model | CPS SC20kW - CN |
| Sellers on SolarCheck | 5 offers |
| Stock location | Lahore (602 units) |
Full datasheet
As published by Shanghai Chint Power Systems Co., Ltd. (CPS), across all 2 models in this family.
Product Overview
| Type | On-Grid |
|---|---|
| Operating Temperature | -20 ~ +60 ℃ |
| Region | China |
| Weight | 50 kg |
| Product Warranty | 5 Years |
| Power Range | 20 kW |
| Frequency | 50Hz, 60Hz |
| Efficiency | 98.1 % |
| Protection Class | IP65 |
| No of feed-in phases | 3 Phases |
| MPP(T) Voltage Range | 500~800 V |
Product Characteristics
2 models| Specification | CPS SC20KTL-O/CN | CPS SC20KTL-DO |
|---|---|---|
| No of MPP Trackers | 1 | 2 |
| DC Inputs | 5 | 6 |
| Frequency | 50 Hz | 50, 60 Hz |
Product Characteristics, common to all models
| Product Warranty (Min) | 5 Years |
|---|---|
| Max. DC Power | 22 kW |
| Max. DC Voltage | 850 V |
| Rated DC Voltage | 650 V |
| Min. DC Voltage to Start Feed In | 485 V |
| Max. DC Current | 42 A |
| MPP(T) Voltage Range | 500~800 V |
| Max. AC Power | 20 kW |
| Output AC Voltage Range | 320~460 V |
| Rated AC Voltage | 400 V |
| Max. AC Current | 30 A |
| Power Factor (cosθ) | 0.99 |
| Distortion (THD) | < 2 % |
| No of feed-in phases | 3 |
| Max. Efficiency | 98.1 % |
| Euro Efficiency | 97.5 % |
| Dimensions (H/W/D) | 750x543x220 mm |
| Weight | 50 kg |
| Power Consumption at Night | < 20 W |
| Operating Temperature | -20 ~ +60 ℃ |
| Protection Class | IP65 |
| Humidity | 0-95 % |
| Cooling | Fan |
| Max. Altitude | 4000 m |
| Interface | RS 485 |
| Display | LCD, LED |
| Protection Features | Anti Island Protection(ENS) |
Buying by the pallet?
Verified installers and distributors see the manufacturer's own quantity pricing on the products where the maker published one, along with who makes it and how to reach them. These are factory rates for bulk orders, before shipping, duty and clearing. They are not the price of a single unit delivered to you, which is what the offers above are.
Sign in21 companies carry Shanghai Chint Power Systems Co., Ltd. (CPS)
They list Shanghai Chint Power Systems Co., Ltd. (CPS) among their suppliers. Ask whether they stock this model. Installation is quoted per kW on top of the hardware price.
Showing 12 of 21.
Compare with similar
The closest inverters in the catalogue, on the same rows. Green marks the better number.

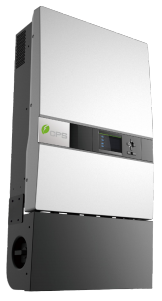

| Specification |  Shanghai Chint Power Systems Co., Ltd. (CPS) CPS SC20kW - CN This item |  Shanghai Chint Power Systems Co., Ltd. (CPS) CPS SC14/20kW(US)View |  Huawei Technologies Co., Ltd. SUN2000-20KTL-M3 (JP)View |  GoodWe Technologies Co., Ltd. ET LV 5-20kWView |
|---|---|---|---|---|
| Price per watt | Rs 1.1 / watt | Rs 1 / watt | Rs 1 / watt | Rs 1 / watt |
| Unit price | Rs 21,500 | Rs 19,900 | Rs 20,500 | Rs 20,300 |
| Rated output | 20 kW | 20 kW | 20 kW | 20 kW |
| Efficiency | 98.1% | 97.4% | 97.6% | 97.8% |
| Warranty | 5 years | 20 years | 5 years | 5 years |
| Technology | — | — | — | — |
| Made in | China | China | China | China |
| Sellers | 4 from Rs 21,500 | 2 from Rs 19,900 | 1 from Rs 20,500 | 3 from Rs 20,300 |
| Stock | 602 in Lahore | 513 in Karachi | 282 in Lahore | 775 in Karachi |
