CPS SCA36kW(US) — Inverter manufactured by Shanghai Chint Power Systems Co., Ltd. (CPS), listed for the Pakistani market.
About this item
- 36 kW rated output at 98.6% efficiency
- 5-year product warranty
- No certifications supplied by the vendor. Ask for them before paying
- 1000x600x230 mm, 55 kg
- Made in China · 119 units held in Multan
Rs 12.2/ watt
Rs 440,300 per unit
Estimated price
Worked out from the maker's own export price, plus shipping, duty, sales tax and clearing into Pakistan.
No seller has given us their price for this yet. Ask for a quote before you buy.
or Rs 11,293/mo for 60 months ·
- Sold by
- Delta Energy
- Dispatch
- in 4 days from Multan
- Covered by
- 5-year manufacturer warranty
- Other sellers
- Compare 1 more →
Where to buy this
2 sellers stock this SKU. The figure under each price is what that seller costs you over the cheapest new offer.
Indicative prices, estimated from landed cost. Sellers have not quoted these. Ask for a quote before you buy.
| Seller | Condition | Covered by | Price | Stock | Dispatch | Action |
|---|---|---|---|---|---|---|
| Delta EnergyMultan | New | 5-year manufacturer warranty | Cheapest newRs 440,300 | — | 4d | |
| Solar TradeMultan | New | 5-year manufacturer warranty | Rs 462,300+Rs 22,000 | — | 7d |
Specifications
Electrical
| Rated output | 36 kW |
|---|---|
| Efficiency | 98.6% |
| Price per watt | Rs 22 |
Physical
| Dimensions | 1000x600x230 mm |
|---|---|
| Weight | 55 kg |
| Country of origin | China |
Warranty & certification
| Product warranty | 5 years |
|---|---|
| Certifications | None supplied |
| Manufacturer tier | Not Tier-1 listed |
Availability
| Brand | Shanghai Chint Power Systems Co., Ltd. (CPS) |
|---|---|
| Model | CPS SCA36kW(US) |
| Sellers on SolarCheck | 2 offers |
| Stock location | Multan (119 units) |
Full datasheet
As published by Shanghai Chint Power Systems Co., Ltd. (CPS).
Product Overview
| Type | On-Grid |
|---|---|
| Operating Temperature | -25 ~ +60 ℃ |
| Region | China |
| Weight | 55 kg |
| Product Warranty | 5 Years |
| Power Range | 36 kW |
| Frequency | 60Hz |
| Efficiency | 98.6 % |
| Protection Class | IP65, NEMA 4 |
| Transformer | Transformerless |
| No of feed-in phases | 3 Phases |
| MPP(T) Voltage Range | 540~800 V |
Product Characteristics
| Product Warranty (Min) | 5 Years |
|---|---|
| Max. DC Power | 49 kW |
| Max. DC Voltage | 1000 V |
| Min. DC Voltage to Start Feed In | 330 V |
| Max. DC Current | 70 A |
| MPP(T) Voltage Range | 540~800 V |
| No of MPP Trackers | 2 |
| DC Inputs | 4 |
| Max. AC Power | 36 kW |
| Output AC Voltage Range | 422~528 V |
| Rated AC Voltage | 480 V |
| Frequency Range | 57-63 Hz |
| Frequency | 60 Hz |
| Power Factor (cosθ) | 0.99 |
| Distortion (THD) | < 3 % |
| No of feed-in phases | 3 |
| Max. Efficiency | 98.6 % |
| Euro Efficiency | 98 % |
| Dimensions (H/W/D) | 1000x600x230 mm |
| Weight | 55 kg |
| Power Consumption at Night | < 2 W |
| Operating Temperature | -25 ~ +60 ℃ |
| Transformer | Transformerless |
| Protection Class | IP65, NEMA 4 |
| Humidity | 0-95 % |
| Cooling | Fan |
| Max. Altitude | 4000 m |
| Interface | RS 485 |
| Display | LCD, LED |
| Protection Features | Ground Fault Monitoring |
Buying by the pallet?
Verified installers and distributors see the manufacturer's own quantity pricing on the products where the maker published one, along with who makes it and how to reach them. These are factory rates for bulk orders, before shipping, duty and clearing. They are not the price of a single unit delivered to you, which is what the offers above are.
Sign in21 companies carry Shanghai Chint Power Systems Co., Ltd. (CPS)
They list Shanghai Chint Power Systems Co., Ltd. (CPS) among their suppliers. Ask whether they stock this model. Installation is quoted per kW on top of the hardware price.
Showing 12 of 21.
Compare with similar
The closest inverters in the catalogue, on the same rows. Green marks the better number.

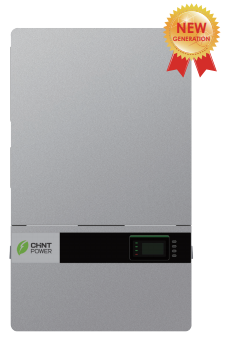

| Specification |  Shanghai Chint Power Systems Co., Ltd. (CPS) CPS SCA36kW(US) This item |  Shanghai Chint Power Systems Co., Ltd. (CPS) SCA30/36kWView |  Shanghai Chint Power Systems Co., Ltd. (CPS) SCA20/25/30/36kW - CNView |  Ginlong (Solis) Technologies Co., Ltd S6-GC3P(23-36)K-LV-NDView |
|---|---|---|---|---|
| Price per watt | Rs 12.2 / watt | Rs 13.7 / watt | Rs 13.2 / watt | Rs 21.3 / watt |
| Unit price | Rs 440,300 | Rs 493,300 | Rs 473,600 | Rs 768,200 |
| Rated output | 36 kW | 36 kW | 36 kW | 36 kW |
| Efficiency | 98.6% | 98.6% | 98.6% | 97.8% |
| Warranty | 5 years | 5 years | 5 years | 5 years |
| Technology | — | — | — | — |
| Made in | China | China | China | China |
| Sellers | 2 from Rs 440,300 | 2 from Rs 493,300 | 4 from Rs 473,600 | 5 from Rs 768,200 |
| Stock | 119 in Multan | 747 in Karachi | 870 in Karachi | 1,450 in Islamabad |
