SPV685-700-TG12-132BD — Solar Panel manufactured by SpolarPV Technology Co., Ltd., listed for the Pakistani market.
About this item
- 700 W rated output at 22.57% efficiency, TOPCon cells
- 12-year product warranty, 30-year performance warranty
- No certifications supplied by the vendor. Ask for them before paying
- 2383x1302x30 mm, 38 kg
- Made in China
Rs 41.3/ watt
Rs 28,900 per panel
Estimated PKR 37 to 45 per watt
The price above sits inside that range. It starts from the customs value the Federal Board of Revenue sets for imported panels, in valuation ruling 2077/2026, plus sales tax, withholding tax and clearing. The low end is a bulk dealer price and the high end is a shop price.
No seller has given us their price for this yet. Ask for a quote before you buy.
- Sold by
- Solar Source
- Dispatch
- in 4 days from
- Covered by
- 12-year manufacturer warranty
- Other sellers
- Compare 3 more →
Where to buy this
4 sellers stock this SKU. The figure under each price is what that seller costs you over the cheapest new offer.
Indicative prices, estimated from landed cost. Sellers have not quoted these. Ask for a quote before you buy.
| Seller | Condition | Covered by | Price | Stock | Dispatch | Action |
|---|---|---|---|---|---|---|
| Solar Source | New | 12-year manufacturer warranty | Cheapest newRs 28,900 | — | 4d | |
| W11 Stop Solar | New | 12-year manufacturer warranty | Cheapest newRs 28,900 | — | 8d | |
| Kaiynat HiTech Services | New | 12-year manufacturer warranty | Cheapest newRs 28,900 | — | 9d | |
| Lucky Global Energy | New | 12-year manufacturer warranty | Cheapest newRs 28,900 | — | 13d |
Specifications
Electrical
| Rated output | 700 W |
|---|---|
| Efficiency | 22.57% |
| Cell type | TOPCon |
| Price per watt | Rs 41.3 |
Physical
| Dimensions | 2383x1302x30 mm |
|---|---|
| Weight | 38 kg |
| Country of origin | China |
Warranty & certification
| Product warranty | 12 years |
|---|---|
| Performance warranty | 30 years |
| Certifications | None supplied |
| Manufacturer tier | Not Tier-1 listed |
Availability
| Brand | SpolarPV Technology Co., Ltd. |
|---|---|
| Model | SPV685-700-TG12-132BD |
| Sellers on SolarCheck | 4 offers |
| Stock location | — |
Full datasheet
As published by SpolarPV Technology Co., Ltd., across all 4 models in this family.
Product Overview
| Technology | TOPCon |
|---|---|
| Power Range | 685 - 700 Wp |
| Region | China |
| Weight | 38 kg |
| Product Warranty | 12 Years |
| Power Warranty | 12 Years of 90 %, 30 Years of 84.8 % |
| Panel Efficiency | 22.08 % - 22.57 % |
| Dimension | 2383x1302x30 mm |
| Glass Thickness | 2 mm |
| Temperature Coefficient of Pmax | -0.3 %/°C |
| Cell Number | 132 |
Product Characteristics
4 models| Specification | SPV685-TG12-132BD | SPV690-TG12-132BD | SPV695-TG12-132BD | SPV700-TG12-132BD |
|---|---|---|---|---|
| Maximum Power (Pmax) | 685 Wp | 690 Wp | 695 Wp | 700 Wp |
| Voltage at Maximum Power (Vmpp) | 39.83 V | 40.05 V | 40.25 V | 40.48 V |
| Current at Maximum Power (Impp) | 17.21 A | 17.27 A | 17.28 A | 17.31 A |
| Open Circuit Voltage (Voc) | 47.65 V | 47.9 V | 48.07 V | 48.25 V |
| Short Circuit Current (Isc) | 18.25 A | 18.28 A | 18.31 A | 18.35 A |
| Panel Efficiency | 22.08 % | 22.24 % | 22.41 % | 22.57 % |
| Maximum Power (Pmax) (2) | 521 Wp | 525 Wp | 529 Wp | 533 Wp |
| Voltage at Maximum Power (Vmpp) (2) | 37.28 V | 37.54 V | 37.75 V | 37.98 V |
| Current at Maximum Power (Impp) (2) | 13.95 A | 14.01 A | 14.03 A | 14.05 A |
| Open Circuit Voltage (Voc) (2) | 45.18 V | 45.37 V | 45.53 V | 45.76 V |
| Short Circuit Current (Isc) (2) | 14.69 A | 14.73 A | 14.78 A | 14.82 A |
Product Characteristics, common to all models
| Type | Monocrystalline |
|---|---|
| Product Warranty | 12 Years |
| Power Warranty | 12 Years of 90 %, 30 Years of 84.8 % |
| Total Degradation Rate ⏳ | 0.51 % |
| Power Tolerance | 0 ~ +0.5 % |
| Temperature | 45±2 °C |
| Operating Temperature Range | -40 - 85 °C |
| Temperature Coefficient of Pmax | -0.3 %/°C |
| Temperature Coefficient of Voc | -0.275 %/°C |
| Temperature Coefficient of Isc | 0.045 %/°C |
| Maximum System Voltage | 1500 V |
| Series Fuse Rating | 30 A |
| Panel Dimension (H/W/D) | 2383x1302x30 mm |
| Weight | 38 kg |
| Glass Thickness | 2 mm |
| Frame Type | Anodized Aluminium |
| Junction Box Diodes | 3 |
| Junction Box Protection Class | IP 68 |
| Connector Type | MC4 |
| Cable Crossection | 4 mm 2 |
| Cable Length | 300 mm |
Buying by the pallet?
Verified installers and distributors see the manufacturer's own quantity pricing on the products where the maker published one, along with who makes it and how to reach them. These are factory rates for bulk orders, before shipping, duty and clearing. They are not the price of a single unit delivered to you, which is what the offers above are.
Sign in0 companies carry SpolarPV Technology Co., Ltd.
They list SpolarPV Technology Co., Ltd. among their suppliers. Ask whether they stock this model. Installation is quoted per kW on top of the hardware price.
Compare with similar
The closest panels in the catalogue, on the same rows. Green marks the better number.

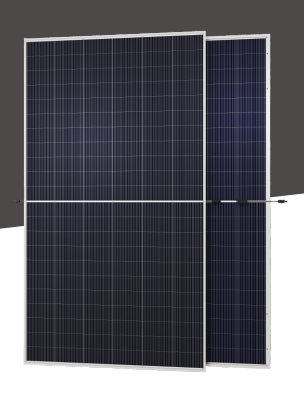

| Specification |  SpolarPV Technology Co., Ltd. SPV685-700-TG12-132BD This item |  MY Solar Technology Co., Ltd. M12 Series MY-M12/144 660-700View |  Renesola Co., Ltd. RS9-685~705NG-E1View |  Ningbo Osda Solar Co., Ltd. ODA670-705-33VMHDView |
|---|---|---|---|---|
| Price per watt | Rs 41.3 / watt | Rs 39.6 / watt | Rs 41.3 / watt | Rs 41.3 / watt |
| Unit price | Rs 28,900 | Rs 27,700 | Rs 29,100 | Rs 29,100 |
| Rated output | 700 W | 700 W | 705 W | 705 W |
| Efficiency | 22.57% | 22.3% | 22.7% | 22.7% |
| Warranty | 12 years | 12 years | 15 years | 15 years |
| Technology | TOPCon | Monocrystalline | TOPCon | TOPCon |
| Made in | China | China | China | China |
| Sellers | 4 from Rs 28,900 | — | — | — |
| Stock | — | — | — | — |
